Gotta Go Faster, Part 9.

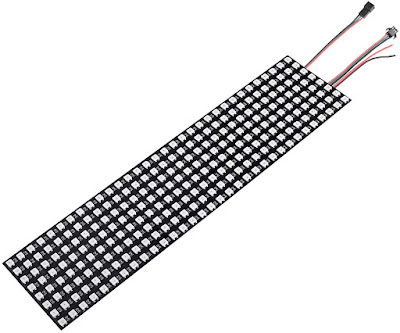

This last entry in this series of posts about using the Teensy instead of the Arduino contains the full source code for my amplifier. Remember is is quite specific for my needs and taste but I post it as a reference. I use a Teensy 4.0 together with an ADAU1701 based DSP connected over I2S. The output is rendered on a 8 x 32 RGB LED matrix commonly found on Amazon and the like.
The difference between using the Arduino with an analog input, FHT and integer math etc. compared to the Teensy, I2S, FFT, floating point math, WS2812Serial and FastLED is like night and day. The response now is amazingly quick with a great resolution and butter smooth output. I am extremely happy with the end result. Below is the full source code listing including the support classes library.
// Teensy #include <Audio.h> #include <Wire.h> #include <SPI.h> #include <SD.h> #include <SerialFlash.h> // PIN const uint8_t LED_PIN = 1; const uint8_t INPUT_PINS[] = {2, 3, 4, 5}; const uint8_t MODE_PIN = 6; // pin 8 used for I2S IN1 on Teensy 4.0 // pin 13 is onboard led pin on Teensy 4.0 const uint8_t STATUS_PIN = 13; const uint8_t OUTPUT_PINS[] = {16, 17, 18, 19}; // pin 20 uded for I2S LRCLK on Teenst 4.0 // pin 21 uded for I2S BCLK on Teenst 4.0 // MEM const uint8_t BUFFER_LEN = 20; const uint8_t BUFFER_ADR = 0x10; // BTN const uint8_t NUM_INPUT = sizeof(INPUT_PINS) / sizeof(INPUT_PINS[0]); const uint8_t DEF_INPUT = 0; // LDR const uint8_t LDR_ADC = 0; // pin 14 const uint16_t LDR_MIN = 100; const uint16_t LDR_MAX = 600; const uint8_t MAX_DIM = 192; const float LDR_ALPHA = 0.01; // LED const uint8_t XRES = 32; const uint8_t YRES = 8; const uint16_t NUM_LEDS = XRES * YRES; const uint16_t MAX_POWER = 4 * 1000; // milliwatts const uint8_t BRIGHTNESS = 128; #include <WS2812Serial.h> #define USE_WS2812SERIAL #define FASTLED_INTERNAL #include <FastLED.h> // FFT const uint8_t NUM_BAND = XRES / 2; const float BND_ALPHA = 0.2; // SND const float SILENCE = 0.02; const uint8_t PEAK_HOLD = 32; const float PEAK_DECAY = 0.02; const float CHN_ALPHA = 0.9; // ETC const uint16_t POWERUP_MS = 2000; const uint16_t GRADIENT_MS = 1000; const uint32_t SILENCE_MS = 60000; const uint8_t UPDATE_FPS = 60; const uint8_t UPDATE_MS = 1000 / UPDATE_FPS; const uint8_t FIRE_FPS = 15; const uint8_t FIRE_MS = 1000 / FIRE_FPS; #include "SupportClasses.h" struct SoundLevel { float value = 0; float peak = 0; uint8_t hold = 0; // update with new reading void update(float reading) { value = reading; if (value > peak) { peak = value; hold = PEAK_HOLD; } else if (hold > 0) { hold--; } else if (peak > 0) { peak -= PEAK_DECAY; } } }; bool altMode = false; bool noLight = true; bool noSound = true; uint8_t dimValue = 0; uint8_t gradientHue = 0; SoundLevel leftCh; SoundLevel rightCh; SoundLevel band[NUM_BAND]; Persistent<uint8_t> selectedInput; Timer fireTimer; Timer silenceTimer; Trigger updateTrigger; Trigger gradientTrigger; Debounce modeButton; Debounce inputButton[NUM_INPUT]; FireMatrix<XRES, YRES> fire; CRGB leds[NUM_LEDS]; // Teensy Audio AudioInputI2Sslave i2sSlave; AudioMixer4 mixer; AudioAnalyzePeak peakLeft; AudioAnalyzePeak peakRight; AudioAnalyzeFFT1024 fft1024; AudioConnection patchCordPeakLeft(i2sSlave, 0, peakLeft, 0); AudioConnection patchCordMixerLeft(i2sSlave, 0, mixer, 0); AudioConnection patchCordPeakRight(i2sSlave, 1, peakRight, 0); AudioConnection patchCordMixerRight(i2sSlave, 1, mixer, 1); AudioConnection patchCordFft1024(mixer, fft1024); // map x, y to pixel index uint16_t pixel(uint8_t x, uint8_t y) { const uint16_t index = XRES * (YRES - y); return (y & 0x01) ? index - XRES + x : index - 1 - x; } // update with light adjusted rgb pixel void lightAdjPixel(uint8_t x, uint8_t y, CRGB color) { const uint16_t index = pixel(x, y); leds[index] = color; leds[index].fadeLightBy(dimValue); if (noLight) leds[index].fadeLightBy(128); } // clamp reading between 0.0 and 1.0 float clamp(float reading) { const float temp = reading < 0 ? 0 : reading; return temp > 1 ? 1 : temp; } // scale reading to display resolution uint8_t scale(float reading, uint8_t resolution) { reading = clamp(reading); return reading > SILENCE ? round(reading * resolution) : 0; } // convert I2S reading [0,1] to dBFS float dbfs(float reading) { return 20 * log10(abs(reading)); } // simple exponential smoothing, alpha is the smoothing factor [0,1] // alpha closer to 1, less smoothing, greater weight to recent changes // alpha closer to 0, more smoothing, less responsive to recent changes float ses(float input, float average, float alpha) { return average + alpha * (input - average); } float readBand(byte index) { const int BAND_LUT[NUM_BAND][2] = { { 1, 1}, { 2, 3}, { 4, 5}, { 6, 8}, { 9, 12}, { 13, 18}, { 19, 25}, { 26, 35}, { 36, 48}, { 49, 65}, { 66, 88}, { 89, 119}, {120, 160}, {161, 214}, {215, 287}, {288, 383}, }; return fft1024.read(BAND_LUT[index][0], BAND_LUT[index][1]); } void processBands() { if (fft1024.available()) { float reading[NUM_BAND]; float maxReading = 0; for (byte i = 0; i < NUM_BAND; i++) { reading[i] = readBand(i); maxReading = max(maxReading, reading[i]); } // get scale to max reading factor float f = maxReading > SILENCE ? 1.0 / maxReading : 0; for (byte i = 0; i < NUM_BAND; i++) { // filter and scale reading to max reading band[i].update(ses(reading[i] * f, band[i].value, BND_ALPHA)); } } } void processChannels() { if (peakLeft.available() && peakRight.available()) { leftCh.update(ses(peakLeft.read(), leftCh.value, CHN_ALPHA)); rightCh.update(ses(peakRight.read(), rightCh.value, CHN_ALPHA)); if (leftCh.value > SILENCE && rightCh.value > SILENCE) { silenceTimer.reset(); } } } void processLdr() { static float avg = 0; int value = analogRead(LDR_ADC); avg = ses(value, avg, LDR_ALPHA); // filter ldr reading value = round(avg); value = constrain(value, LDR_MIN, LDR_MAX); // clamp to ldr min-max value = map(value, LDR_MIN, LDR_MAX, 0, MAX_DIM); // map value to min-max dimValue = MAX_DIM - value; // update based on ldr value noLight = (dimValue == MAX_DIM); // is it pitch black? } void displayFire() { if (fireTimer.expired()) { fireTimer.reset(); fire.update(); for (byte x = 0; x < XRES; x++) { for (byte y = 0; y < YRES; y++) { lightAdjPixel(x, y, fire.color(x, y)); } } FastLED.show(); } } void displayChannel(SoundLevel channel, byte y) { static const uint8_t HI = (XRES / 4) * 3; static const uint8_t LO = XRES / 2; // get dBFS as a positive number uint16_t peak = round(abs(dbfs(channel.peak))); uint16_t level = round(abs(dbfs(channel.value))); // constrain to max resolution and convert to headroom peak = XRES - constrain(peak, 0, XRES); level = XRES - constrain(level, 0, XRES); CRGB hiColor; CRGB miColor; CRGB loColor; for (byte x = 1; x < XRES; x += 2) { hiColor = x < LO ? CRGB::Green : x > HI ? CRGB::Red : CRGB::Yellow; miColor = hiColor; miColor.fadeLightBy(64); loColor = miColor; loColor.fadeLightBy(128); if (peak >= x) { lightAdjPixel(x, y, loColor); } if (level >= x) { lightAdjPixel(x, y + 1, hiColor); lightAdjPixel(x, y + 2, hiColor); lightAdjPixel(x, y + 3, miColor); } else if (peak >= x) { lightAdjPixel(x, y + 1, loColor); lightAdjPixel(x, y + 2, loColor); lightAdjPixel(x, y + 3, loColor); } } } void displayHeadroom() { static const uint8_t UPPER = YRES / 2; static const uint8_t LOWER = 0; FastLED.clear(); // left channel on upper half displayChannel(leftCh, UPPER); // right channel on lower half displayChannel(rightCh, LOWER); FastLED.show(); } void displaySpectrum() { static const uint8_t HUE_STEP = 32 / NUM_BAND; uint8_t level; uint8_t peak; uint8_t hue; uint8_t x; uint8_t y; CHSV hiColor; CHSV loColor; FastLED.clear(); for (byte i = 0; i < NUM_BAND; i++) { x = i << 1; peak = scale(band[i].peak, YRES); level = scale(band[i].value, YRES); hue = gradientHue - (i * HUE_STEP); hiColor = CHSV(hue, 255, 255); loColor = CHSV(hue, 255, 127); for (y = 0; y < YRES; y++) { if (level > y) { lightAdjPixel(x, y, hiColor); } if (peak > y) { lightAdjPixel(x + 1, y, loColor); } } } FastLED.show(); } // set selected output and save to eeprom void setOutput(uint8_t selection) { selection = selection < NUM_INPUT ? selection : DEF_INPUT; for (byte i = 0; i < NUM_INPUT; i++) { if (selection == i) { digitalWrite(OUTPUT_PINS[i], HIGH); } else { digitalWrite(OUTPUT_PINS[i], LOW); } } if (selection != selectedInput.get()) { selectedInput.put(selection); } } // input selection callback void inputCallback(uint8_t pin, uint8_t mode) { if (mode == LOW) return; for (byte i = 0; i < NUM_INPUT; i++) { if (pin == INPUT_PINS[i]) { setOutput(i); break; } } } // mode selection callback void modeCallback(uint8_t pin, uint8_t mode) { altMode = (mode == HIGH); } // gradient hue callback void gradientCallback() { gradientHue--; } void updateCallback() { gradientTrigger.update(); processLdr(); processChannels(); if (silenceTimer.expired()) { displayFire(); } else { if (altMode) { displayHeadroom(); } else { processBands(); displaySpectrum(); } } } void setup() { // turn on onboard led digitalWrite(STATUS_PIN, HIGH); // init output pins and input buttons modeButton.setup(MODE_PIN, modeCallback); for (byte i = 0; i < NUM_INPUT; i++) { pinMode(OUTPUT_PINS[i], OUTPUT); inputButton[i].setup(INPUT_PINS[i], inputCallback); } // get persisted data selectedInput.setup(DEF_INPUT, BUFFER_ADR, BUFFER_LEN); // output selected input setOutput(selectedInput.get()); // init sound system AudioMemory(15); mixer.gain(0, 0.5); mixer.gain(1, 0.5); delay(POWERUP_MS); // init leds //FastLED.addLeds<NEOPIXEL, LED_PIN>(leds, NUM_LEDS); FastLED.addLeds<WS2812SERIAL, LED_PIN, BRG>(leds, NUM_LEDS); FastLED.setCorrection(TypicalLEDStrip); FastLED.setMaxPowerInMilliWatts(MAX_POWER); FastLED.setBrightness(BRIGHTNESS); FastLED.clear(); FastLED.show(); // init timers and triggers fireTimer.set(FIRE_MS); silenceTimer.set(SILENCE_MS); updateTrigger.setup(UPDATE_MS, updateCallback); gradientTrigger.setup(GRADIENT_MS, gradientCallback); // turn off onboard led digitalWrite(STATUS_PIN, LOW); } void loop() { modeButton.update(); for (byte i = 0; i < NUM_INPUT; i++) { inputButton[i].update(); } updateTrigger.update(); }
#ifndef SupportClasses_h #define SupportClasses_h #include "Arduino.h" #include "EEPROM.h" #include <FastLED.h> // simple class for wear level storage in EEPROM template <class T> class Persistent { private: static const uint8_t BLOCK_MARK = 0xfe; static const uint8_t BLOCK_FREE = 0xff; uint8_t blockSize; uint8_t blockNum; int blockAddr; int startAddr; int endAddr; T value; // seek last block mark and return address if found else -1 int seek() { uint8_t mark; int result = -1; for (int addr = startAddr; addr < endAddr; addr += blockSize) { mark = EEPROM[addr]; if (mark == BLOCK_MARK) { result = addr; // block mark found } else if (mark != BLOCK_FREE) { result = -1; // unformatted } } return result; } // mark all status bytes as free void format() { for (int addr = startAddr; addr < endAddr; addr += blockSize) { EEPROM[addr].update(BLOCK_FREE); } } public: // default data, start address and ring buffer slots void setup(T data, int address, uint8_t slots) { value = data; blockNum = slots; blockSize = sizeof(T) + 1; startAddr = address; endAddr = startAddr + blockNum * blockSize; if (endAddr > EEPROM.length()) endAddr = EEPROM.length(); blockAddr = seek(); if (blockAddr < 0) { // unformatted, format ring buffer format(); blockAddr = startAddr; // put default data into ring buffer put(data); } else { // get stored data from EEPROM as value EEPROM.get(blockAddr + 1, value); } } // default data with a ten slot ring buffer from beginning of EEPROM void setup(T data) { setup(data, 0, 10); } // put data into wear level ring buffer void put(T data) { if (blockAddr < 0) return; int nextAddr = blockAddr + blockSize; if (nextAddr >= endAddr) nextAddr = startAddr; // put new data into ring buffer EEPROM.put(nextAddr + 1, data); // update with new mark EEPROM.update(nextAddr, BLOCK_MARK); // clear old mark after new update EEPROM.update(blockAddr, BLOCK_FREE); blockAddr = nextAddr; // store data as value value = data; } // get data from wear level ring buffer T get() { // get stored value insted of reading from EEPROM return value; } // return start address int begin() { return startAddr; } // return end address int end() { return endAddr; } // return length of ring buffer uint16_t length() { return blockNum * blockSize; } }; class Timer { // a simple timer class to check if time set has expired private: unsigned long started = 0; unsigned long timeout = 0; public: void set(unsigned long ms) { timeout = ms; reset(); } void reset() { started = millis(); } bool expired() { return elapsed() >= timeout; } unsigned long elapsed() { return millis() - started; } }; // trigger callback function typedef void (*trigger_cb)(); class Trigger { // a simple trigger class with callback on expiry private: trigger_cb callback = NULL; unsigned long started = 0; unsigned long interval = 0; public: void setup(unsigned long ms, trigger_cb callback) { this->callback = callback; set(ms); } void set(unsigned long ms) { interval = ms; reset(); } void reset() { started = millis(); } void update() { unsigned long now = millis(); if (now - started >= interval) { if (callback) callback(); started = now; } } }; // debounce callback function, called with pin and state (HIGH = closed, LOW = open) typedef void (*debounce_cb)(uint8_t, uint8_t); class Debounce { // debounces a normally open (NO) switch connected for internal pullup resistor private: static const uint8_t DEF_MS = 35; debounce_cb callback = NULL; uint8_t lastState = LOW; unsigned long lastChangedTime = 0; uint8_t debounceTime; uint8_t pin; public: void setup(uint8_t pin, debounce_cb callback, uint8_t ms) { this->pin = pin; this->callback = callback; this->debounceTime = ms; pinMode(pin, INPUT_PULLUP); update(); } void setup(uint8_t pin, debounce_cb callback) { setup(pin, callback, DEF_MS); } void setup(uint8_t pin) { setup(pin, NULL, DEF_MS); } void update() { unsigned long now = millis(); if (now - lastChangedTime >= debounceTime) { uint8_t currentState = !digitalRead(pin); if (currentState == lastState) return; lastChangedTime = now; lastState = currentState; if (callback) callback(pin, currentState); } } // state is LOW if switch is open and HIGH if closed uint8_t state() { return lastState; } }; class EmaFilter { // an exponential moving average filter using only integer math // supports up to 24-bit inputs and takes an alpha from 0 to 255 // an alpha of 0 means the filtered value changes very slowly // an alpha of 255 means the filter returns the value of the input private: static const uint32_t MAX_VAL = 0xFFFFFF; // 24-bit max bool noState = true; uint32_t state = 0; public: uint32_t update(uint32_t value, uint8_t alpha) { if (noState) { return set(value); } else { value = value > MAX_VAL ? MAX_VAL : value; uint32_t newState = (value * (alpha + 1) + (state * (255 - alpha))) / 256; if (state == newState && value != newState) { if (value > newState) { newState++; } else if (value < newState) { newState--; } } state = newState; } return get(); } uint32_t reset() { state = 0; noState = true; return get(); } uint32_t set(uint32_t value) { state = value > MAX_VAL ? MAX_VAL : value; noState = false; return get(); } uint32_t get() { return state; } }; template <int16_t W, int16_t H> class FireMatrix { private: struct Flare { int16_t x; int16_t y; uint8_t heat; }; // width of the fire matrix static const int16_t WIDTH = W > 8 ? W : 8; // height of the fire matrix static const int16_t HEIGHT = H > 8 ? H : 8; // max number of flares static const uint8_t FLARES = W / 4; // array of flares Flare flare[FLARES]; // fire matrix 4 bit heat points uint8_t heatPoint[WIDTH / 2][HEIGHT]; // number of flares uint8_t flares = 0; // store a 4 bit heat point void putHeat(int16_t x, int16_t y, uint8_t heat) { uint8_t h; if (x < 0 || x >= WIDTH || y < 0 || y >= HEIGHT) return; x >>= 1; // divide x by 2 h = heatPoint[x][y]; // if y is odd put heat in lower 4 bits else in upper 4 bits h = y & 1 ? (h & 0xf0) | (heat & 0xf) : (h & 0xf) | (heat << 4); heatPoint[x][y] = h; } // retrieve a 4 bit heat point uint8_t getHeat(int16_t x, int16_t y) { uint8_t h; if (x < 0 || x >= WIDTH || y < 0 || y >= HEIGHT) return 0; x >>= 1; // divide x by 2 h = heatPoint[x][y]; // if y is odd get heat from lower 4 bits else from upper 4 bits h = y & 1 ? h & 0xf : (h >> 4) & 0xf; return h; } protected: // heat-up flare and update heat points void heatFlare(uint8_t index) { Flare f = flare[index]; int16_t b = f.heat * 10 / cooling + 1; for (int16_t x = (f.x - b); x < (f.x + b); x++) { for (int16_t y = (f.y - b); y < (f.y + b); y++) { if (x >= 0 && x < WIDTH && y >= 0 && y < HEIGHT) { int16_t d = (cooling * sqrt16((f.x - x) * (f.x - x) + (f.y - y) * (f.y - y)) + 5) / 10; uint8_t n = f.heat > d ? f.heat - d : 0; if (n > getHeat(x, y)) { // can only get brighter putHeat(x, y, n); } } } } } // cool down flare and delete it from flare array if out void coolFlare(uint8_t index) { Flare f = flare[index]; if (f.heat > 0) { f.heat--; flare[index] = f; } else { // flare is out for (int16_t i = index + 1; i < flares; i++) { flare[i - 1] = flare[i]; } flares--; } } // try to ignite new flare if there is room in flare array void sparkFlare() { if (flares < FLARES && random8(100) < sparking) { Flare f; f.x = random16(0, WIDTH); f.y = random16(0, (HEIGHT / 8) + 1); f.heat = 10; flare[flares] = f; flares++; } } public: // default palette based on FastLED HeatColors CRGBPalette16 palette = CRGBPalette16( 0x000000, 0x330000, 0x660000, 0x990000, 0xCC0000, 0xFF0000, 0xFF3300, 0xFF6600, 0xFF9900, 0xFFCC00, 0xFFFF00, 0xFFFF33, 0xFFFF66, 0xFFFF99, 0xFFFFCC, 0xFFFFFF ); // flame cool-off rate, default 14 uint8_t cooling = 14; // chance of sparking new flame in pecent, default 40 uint8_t sparking = 30; // call periodicly to update fire matrix void update() { int16_t x, y; // move all existing heat points up the display and cool off for (y = HEIGHT - 1; y > 0; y--) { for (x = 0; x < WIDTH; x++) { uint8_t h = getHeat(x, y - 1); putHeat(x, y, h > 0 ? h - 1 : 0); } } // heat-up the bottom row for (x = 0; x < WIDTH; x++) { putHeat(x, 0, random8(5, 9)); } // glow and cool off flares for (x = 0; x < flares; x++) { // heat-up flare heatFlare(x); // cool-down flare coolFlare(x); } // try spark a new flare sparkFlare(); } // get color from fire matrix CRGB color(int16_t x, int16_t y) { if (x >= 0 && x < WIDTH && y >= 0 && y < WIDTH) { return ColorFromPalette(palette, 24 * getHeat(x, y)); } else { return CRGB::Black; } } }; #endif
